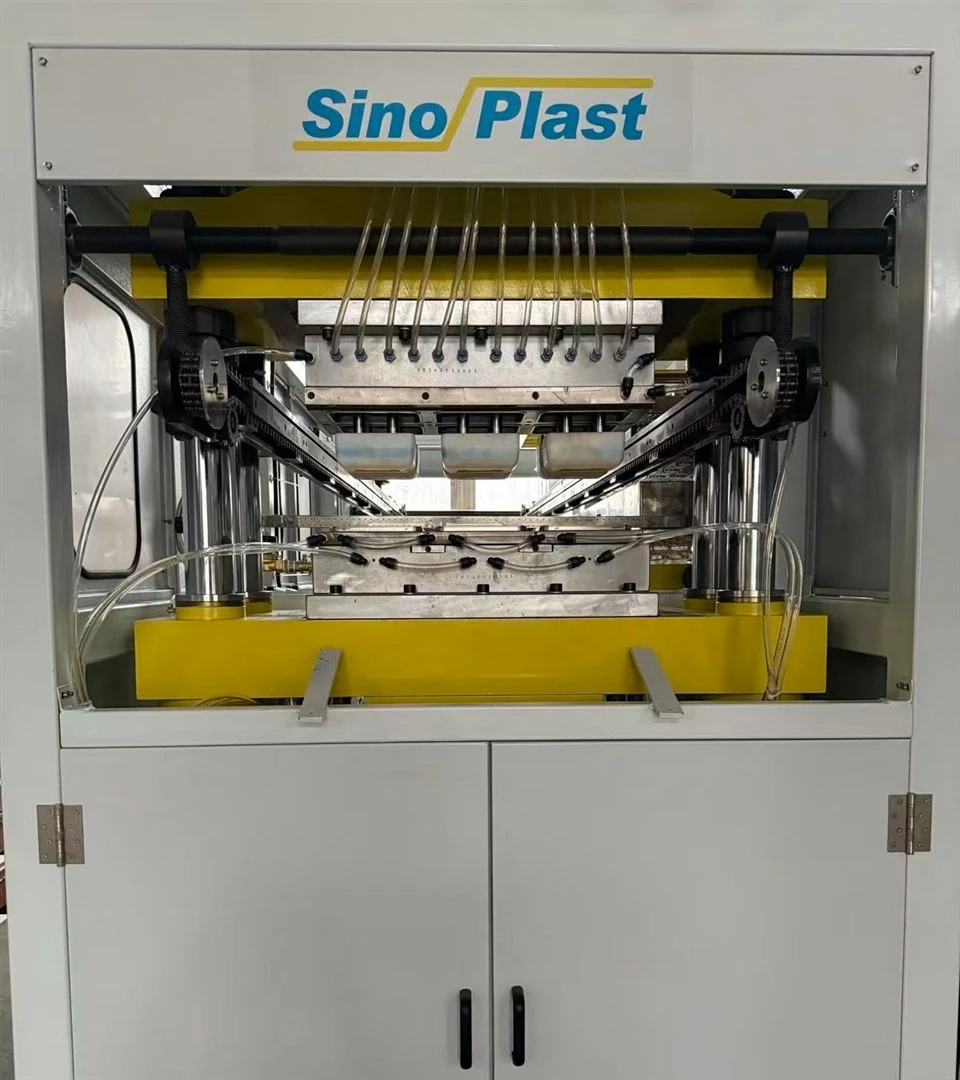

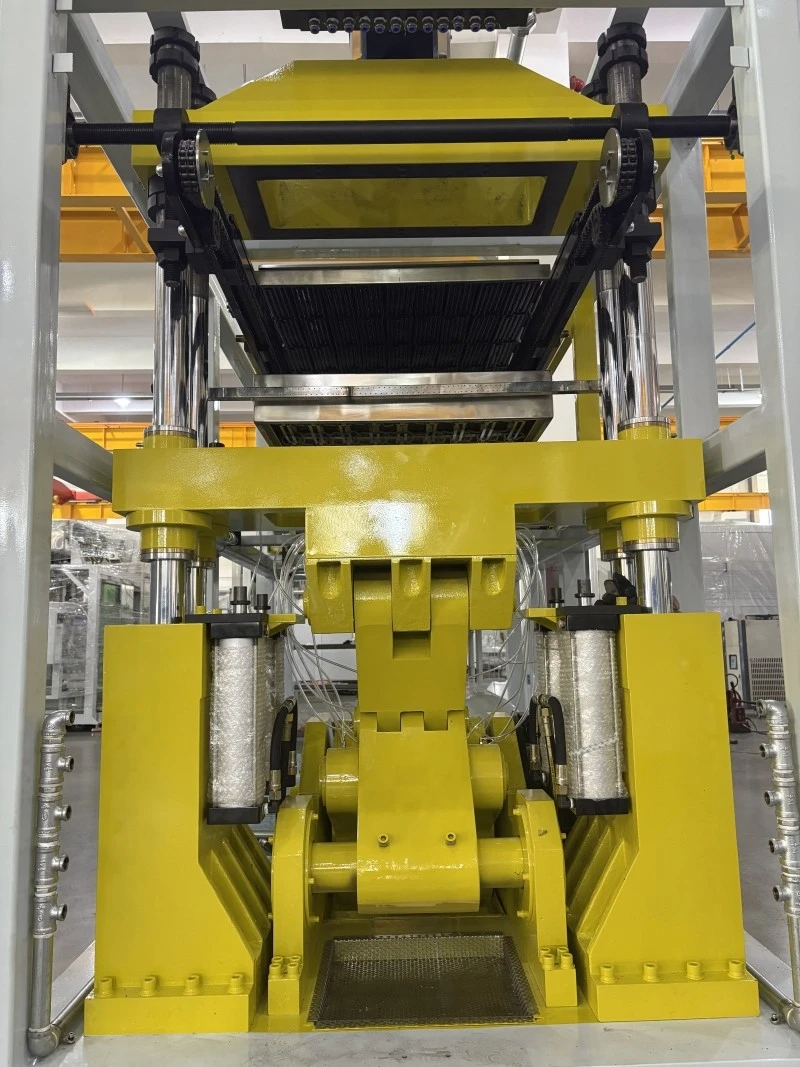

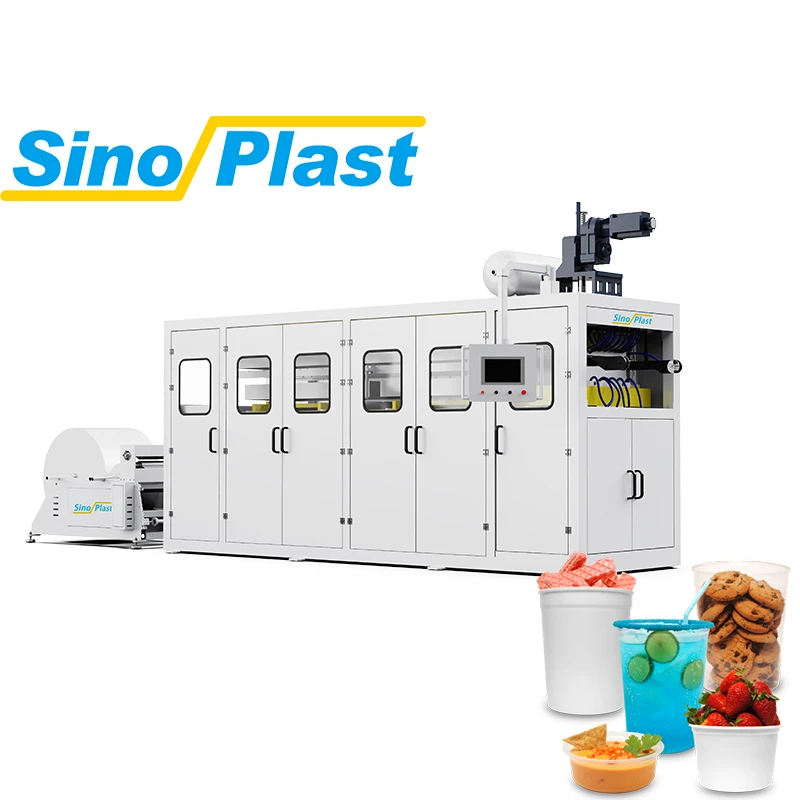

Plastic Cup Making Machine

Plastic Cup Making Machine
Details:
Model:780*450MM Forming Area
Send Inquiry
Description
Send Inquiry



Product Application

product-914-914
product-800-800
product-600-600
product-600-600

Machine parameters



Max.Forming Area

780*450MM

780*540MM

Max.Forming Depth

160MM(Can special design)

Example

Cup Top Dia.=75mm,24cavities/mold

Cup Top Dia.=75mm,32-40cavities/mold

Running Speed

15-32cycles/min(according to sheet thickness,material used and product shape )

Sheet Thickness

0.20-2.5MM

Suitable Material

PP/PS/PET

Lower Mold Movement

15KW Servomotor

22KW Servomotor

Temperature Control Method

Temperature Controller and Temperature Control Module

Air Consumption

1.3-1.6m3/min,0.6-0.8Mpa

Sheet Feeding Method

4KW Servomotor

Plug Stretching Method

7.5KW Servomotor

11KW Servomotor

Approx.Weight

9000KG

10000KG



Auxiliary equipment

 Air Tank
Air Tank
Air Compressor
Air Compressor
Chiller
Chiller
Robot Arm
Robot Arm

Company Exhibition



product-700-933



Our Market



product-1397-965

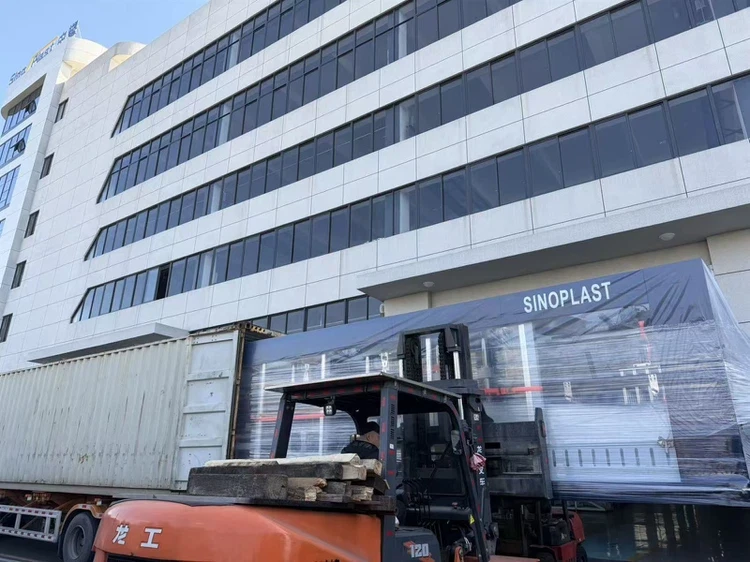

Delivery Photo

product-382-286
product-750-562
product-382-287
product-750-562

Cooperation Brand

product-400-400
product-400-400
product-400-400
product-400-400

Products Description

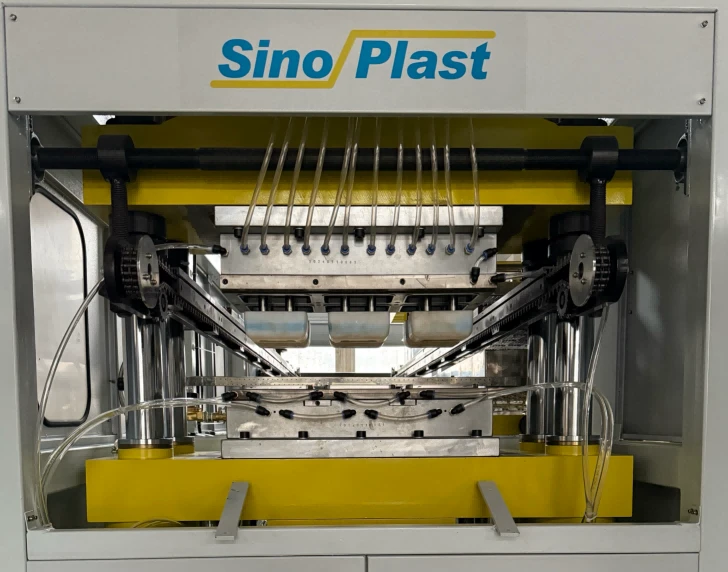

product-728-572

Sinoplast Plastic Cup Machine:Efficient, Precise, and Cost-Effective Production



The plastic cup machine produced by Sinoplast is specifically designed for efficient and precise production of plastic cups. By integrating advanced in-mold cutting technology, this machine is equipped with fully automatic stacking and packaging equipment, significantly reducing labor costs and enabling fully automated production. It has become the preferred equipment for manufacturers in the plastic food packaging industry.

Sinoplast Plastic Cup Machine's main features:



1.High-Performance Specifications

Maximum forming layout: 780 * 540MM, can accommodate thermoformed products with various diameters and more cavities

Production speed: 15-32 molds/mins, significantly improving production efficiency

Material compatibility: PP, PET, PS



Advanced fully automated technology



Combined with fully automatic stacking and packaging machines, it integrates the entire process from forming to packaging, significantly reducing labor costs.

Energy Efficiency



Heating element:Using German imported heating elements to reduce electricity costs during production

Conclusion: Transform Your Packaging Process with Sinoplast machine



Sinoplast is a leading global plastic cup machine manufacturer. Our plastic cup machine is not just a device, but also the best solution provided by manufacturers who pursue efficiency, precision, and energy saving.

product-682-531
Read MoreShow Less





Hot Tags: plastic cup making machine, China plastic cup making machine manufacturers, suppliers, factory
