Themoforming Machine --Product Show
Machine Video
Product Application
Machine parameters
| products |
 |
|
| Station Number | 3 | 3 |
| Max.Forming Area | 780*540MM | 780*650MM |
| Max.Forming Depth | 105MM | |
| Suitable Material | PP/PS/PET | |
| Sheet Width | 550-820MM | |
| Material Thickness Range | 0.15-2MM | |
| Max. Sheet Roll Dia. | 1200MM | |
| Running Speed | 35-40Cycles/min | |
| Forming Station Power | Servo Motor 7 KW*2 pcs | |
| Forming station stretching | Servo Motor 3.5 KW | |
| Cutting Station Power | Servo Motor 7 KW*2 pcs | |
| Stacking Station Power | Servo Motor 3.5 KW | |
| Sheet Feeding Power | Servo Motor 3.5 KW | |
| Air Consumption/Air Pressure |
3m3/min,0.6-0.8Mpa |
|
| Power Voltage | 380V,50Hz 3P (Can be customized) | |
Auxiliary equipment
Company Exhibition
Delivery Photo
Our Market
Cooperation Brand
Products Description

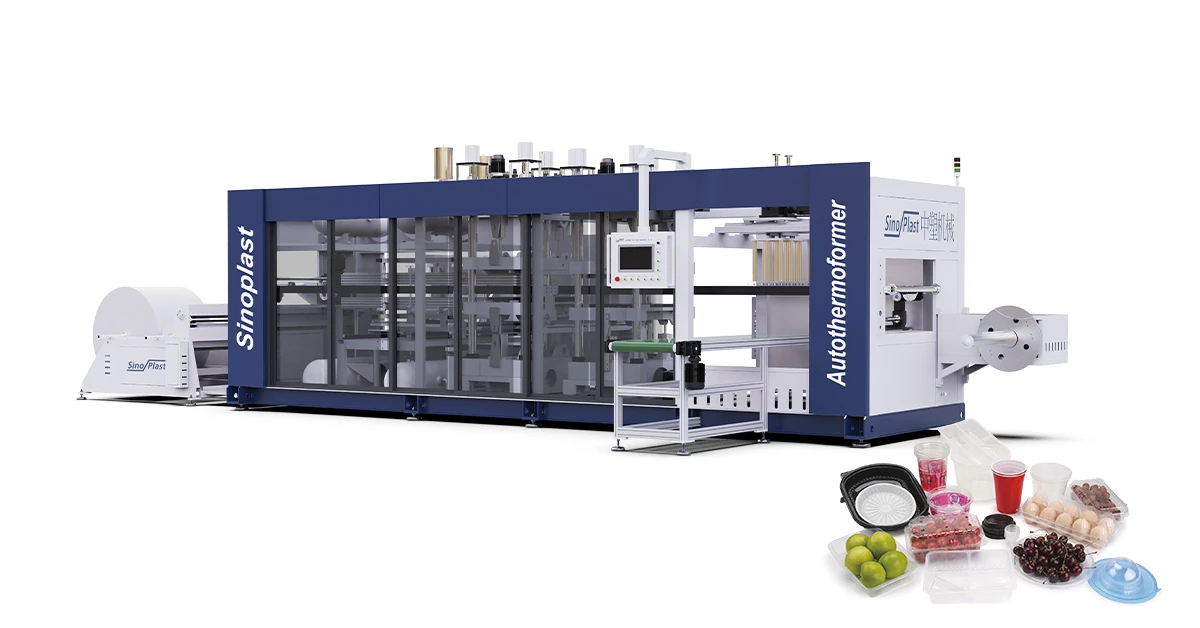

High-Performance Thermoforming Technology by Sinoplast
Sinoplast's plastic thermoforming machine is specifically designed for production of
disposable lunch boxes, fruit boxes, egg trays and other plastic food packaging products. Equipped with a fully servo-driven system, it has the advantages of high performance, stable forming quality, extremely short mold changing time, high-precision cutting, etc., which help reduce production costs.
Stable Quality And High Specifications
Maximum Forming Layout：780*650MM, Adapt to larger and more complex packaging designs
Cycle Speed：45molds/min,Provide high-speed performance and high-quality products
Maximum Forming Depth: 105MM,When processing products with lower depth, the running speed is faster
This plastic thermoforming machine supports a variety of materials, including PP, PET, PS, and PLA. The maximum sheet thickness can reach up to 2.5MM.
Superior Performance And Energy Efficiency
Operating Power: 50-60KW ,Provides more energy-efficient solutions for long-term operation
Imported Heating Tile: use German ELSTEIN ceramic heating element is equipped with a separate temperature controller for precise setting
Sinoplast's thermoforming machine can ensure energy efficiency and provide users with more reliable production needs even in high-yield production situations
Precise Control And User Experience
Control System: Equipped with servo motors and PLC control to achieve precise control and automation
Memory Function:Users can store the operating parameters of each set of molds to avoid resetting them due to mold replacement
SINOPLAST：A Reliable Manufacturer Of Thermoforming Machines
SINOPLAST was founded in 2013 and is a globally recognized supplier of thermoforming machines, dedicated to providing sustainable and recyclable plastic packaging solutions.
The company's services include mold design, manufacturing, installation, and commissioning. SINOPLAST is a trusted partner for thermoformed packaging manufacturers, with over a decade of experience representing innovative technology, first-class quality, and excellent service
